40G QSFP+ AOC
SQQ-AOC4A-xxM

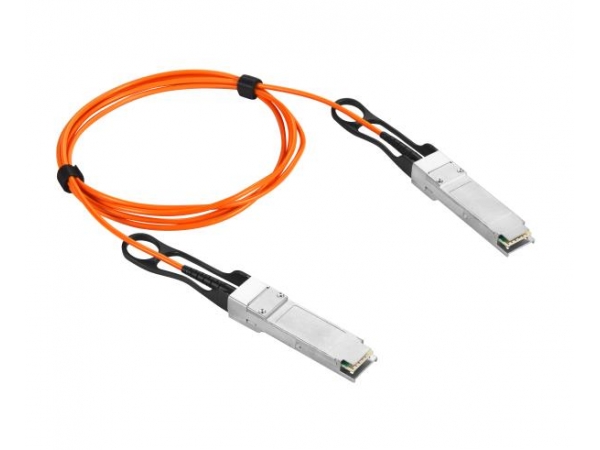

40G QSFP+ Active Optical Cable
QSFP active optic cables are a high performance, low power consumption, long reach interconnect solution supporting 40G Ethernet, fiber channel and PCIe. It is compliant with the QSFP MSA and IEEE P802.3ba 40GBASE-SR4. The QSFP AOC is an assembly of 4 full-duplex lanes, where each lane is capable of transmitting data at rates up to 10Gb/s, providing an aggregated rate of 40Gb/s.-
l Transmission data rate up to 10.3Gbit/s per channel
l Full duplex 4 channel 850nm parallel active optical cable
l Hot pluggable electrical interface
l Differential AC-coupled high speed data interface
l 4 channels 850nm VCSEL array
l 4 channels PIN photo detector array
l SFF-8436 QSFP+ compliant
l Maximum link length of 300m on OM3 Multimode Fiber (MMF)and 400m on OM4 MMF
l RoHS 6 compliant
l Operating case temperature 0°C to +70°C
l 3.3V power supply voltage
-
Form Factor
QSFP+ Active Optical Cable
Data Rate
40G
Connector
QSFP+ to QSFP+
Distance
Up to 300m transmission
Operating Temperature
0 ~ 70℃
Supply Voltage
3.3V
-
l Infiniband transmission at 4ch SDR, DDR and QDR
l 40GBASE-SR4 40G Ethernet
l Data Centers
